Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API 11AX
Model Number: 5-1/2"X8-1/2"to20"X26"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Type: |
Bow Type Spring Centralizer |
Material: |
Stainless Steel |
Central Multimedia: |
Central Machinery Parts |
Central Hydraulics Scissor Lift: |
Toyota Central Locking System |
Weight (KG): |
10 |
Use: |
Well Drilling |
Color: |
Customized |
Type: |
Bow Type Spring Centralizer |
Material: |
Stainless Steel |
Central Multimedia: |
Central Machinery Parts |
Central Hydraulics Scissor Lift: |
Toyota Central Locking System |
Weight (KG): |
10 |
Use: |
Well Drilling |
Color: |
Customized |

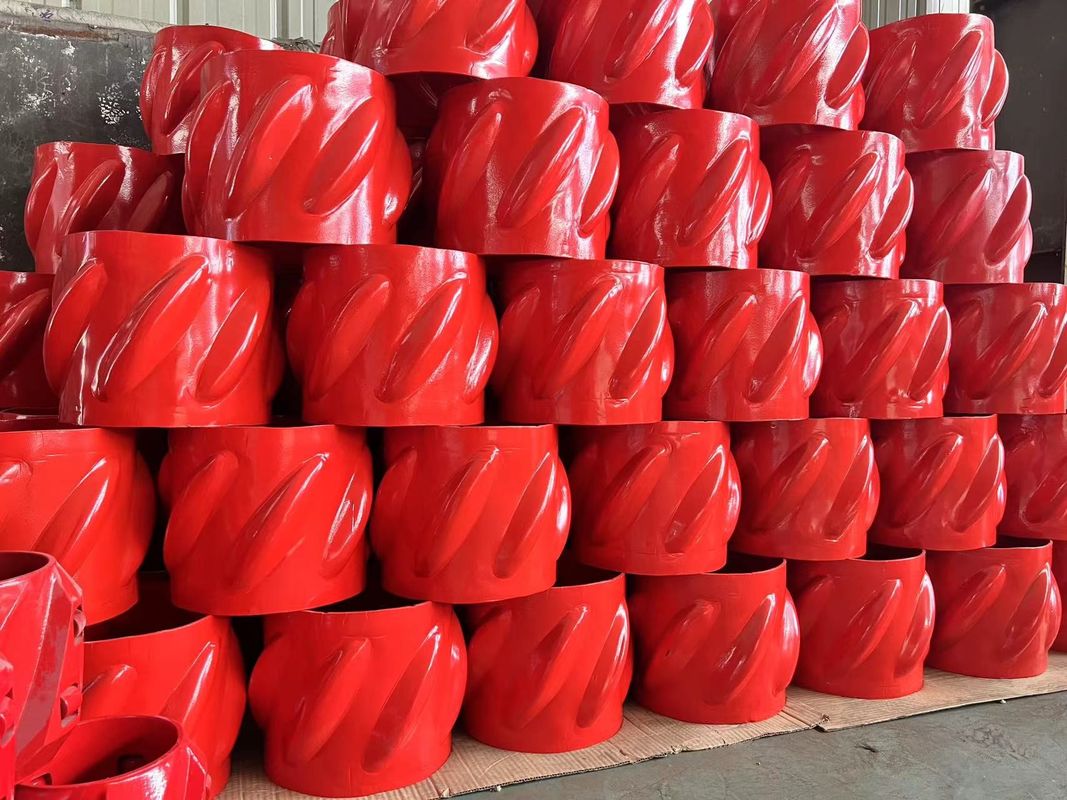

API Spiral Steel Rigid Centralizer casing centralizer
Spiral Rigid Centralizer is a cast steel solid centralizer that is suitable for use in open hole consolidated formations or cased hole applications.
The outside diameter is generally 5" to 25" smaller then the nominal hole size making it suitable for applications where medium to large annular conditions exist.
| Technical Parameter | ||||||
| Spring Casing Centralizer | Size(In) | OD(mm) | IN(mm) | Height(mm) | Max Start-up Force(N) | Min Reset Force(N) |
| 20" | 680 | 512 | 575 | ≤16725 | ≥8363 | |
| 13-3/8" | 455 | 342 | 560 | ≤10853 | ≥5427 | |
| 9-5/8"*12-1/4" | 335 | 248 | 560 | ≤7117 | ≥7117 | |
| 7" | 235 | 181 | 560 | ≤4626 | ≥4626 | |
| 6-5/8"*8-3/4" | 238 | 171 | 560 | ≤4270 | ≥4270 | |
| 5-1/2”*8-1/2” | 235 | 142 | 560 | ≤2758 | ≥2758 | |
| Rigid Centralizer | 13-3/8" | 437 | 344 | 180 |
| 9-5/8"*12-1/4" | 305 | 248 | 120 | |
| 7" | 210 | 182 | 120 | |
| 6-5/8"*8-3/4" | 215 | 171 | 120 | |
| 5-1/2"*8-1/2" | 210 | 142 | 120 |
| Semi-rigid Centralizer | Single Bow Spring Centralizer | Double-bow Spring Centralizer |
|
|
|
| Integral Centralizer | Rigid Centralizer | Rigid Roller Centralizer |
|
|
|
· Zhongshi Group is the API certification enterprise for 15 years;
· ISO9001 quality management system;
· We provide on-site technical service,no matter when and where.
A: We are factory.
A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Payment<=1000USD, 100% in advance.
