Product Details
Place of Origin: China,Henan
Brand Name: ZS
Certification: API 11AX
Model Number: 5-1/2"X8-1/2"to20"X26"
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Metal or wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 1000sets/month
Type: |
Bow Type Spring Centralizer |
Material: |
Stainless Steel |
Central Multimedia: |
Central Machinery Parts |
Central Hydraulics Scissor Lift: |
Toyota Central Locking System |
Weight (KG): |
10 |
Use: |
Well Drilling |
Color: |
Customized |
Type: |
Bow Type Spring Centralizer |
Material: |
Stainless Steel |
Central Multimedia: |
Central Machinery Parts |
Central Hydraulics Scissor Lift: |
Toyota Central Locking System |
Weight (KG): |
10 |
Use: |
Well Drilling |
Color: |
Customized |

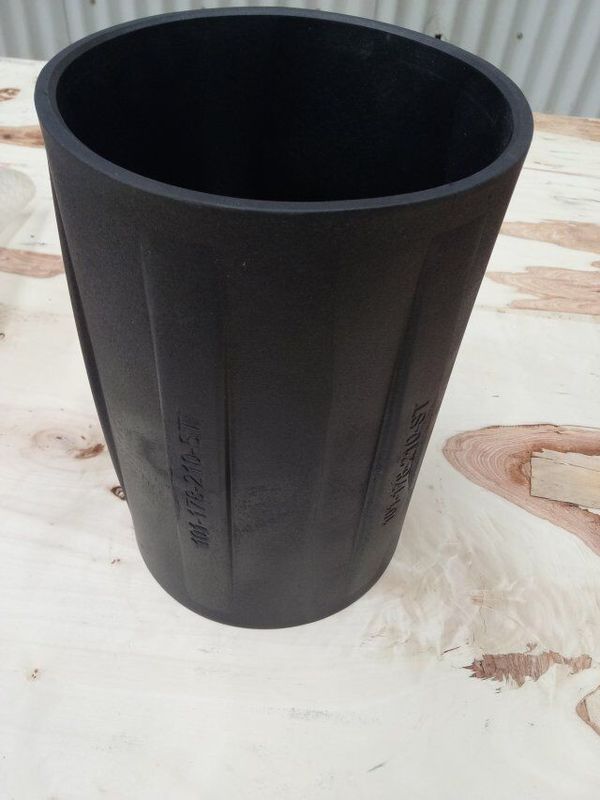

1. API single piece casing centralizer performs satisfactorily in open hole as well as cased hole.
2. These high quanlity product,developed to meet and exceed API 10D specifications for use in highly demanding downhole conditions.
3. Single piece casing centralizer combines the highest restoring force with zero start force and zero running force.
4. The single piece centralizer is used to position the casing in the center of the wellbore in vertical deviated and horizontal wells.
5. The single piece centralizer reduces the effect of channelling by improving the cement flow,the results in more uniform cement thickness in the well bore.
6. By reducing the pipe movement before cement sets in.The single piece centralizers are able to minimize gas channelling.
7. The single piece centralizers are one piece construction in special high strength steel which imparts excellent hardness and spring action ensuring an unmatched ability to come back to its original shape after undergoing rigorous stress loads conditions.
8. The single piece casing centralizers are available in size 4-1/2" to 20".
9. Any special sizes or combination can be available on requirment.
10. This centralizer undergoes a special Iron Phosphate coating process to prevent it from rust and coated with special polyester powder.
11. It is shipped in assembled condition only.
12. When shipping them,in order to save space and shipment charges for customers,we usually put the smaller size centralizer into bigger size centralizer.
| Technical Parameter | ||||||
| Spring Casing Centralizer | Size(In) | OD(mm) | IN(mm) | Height(mm) | Max Start-up Force(N) | Min Reset Force(N) |
| 20" | 680 | 512 | 575 | ≤16725 | ≥8363 | |
| 13-3/8" | 455 | 342 | 560 | ≤10853 | ≥5427 | |
| 9-5/8"*12-1/4" | 335 | 248 | 560 | ≤7117 | ≥7117 | |
| 7" | 235 | 181 | 560 | ≤4626 | ≥4626 | |
| 6-5/8"*8-3/4" | 238 | 171 | 560 | ≤4270 | ≥4270 | |
| 5-1/2”*8-1/2” | 235 | 142 | 560 | ≤2758 | ≥2758 | |
| Rigid Centralizer | 13-3/8" | 437 | 344 | 180 |
| 9-5/8"*12-1/4" | 305 | 248 | 120 | |
| 7" | 210 | 182 | 120 | |
| 6-5/8"*8-3/4" | 215 | 171 | 120 | |
| 5-1/2"*8-1/2" | 210 | 142 | 120 |
| Semi-rigid Centralizer | Single Bow Spring Centralizer | Double-bow Spring Centralizer |
|
|
|
| Integral Centralizer | Rigid Centralizer | Rigid Roller Centralizer |
|
|
|
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.
· Zhongshi Group is the API certification enterprise for 15 years;
· ISO9001 quality management system;
· We provide on-site technical service,no matter when and where.
A: We are factory.
A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Payment<=1000USD, 100% in advance.
