Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API，ISO，QHSE
Model Number: ZS
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Standard exported packing
Delivery Time: 25 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1500 pcs per Month
Product: |
API 11AX Oilfield Sucker Rod Pump Plunger |
Material: |
AISI1045 Steel |
Application: |
Pump Parts |
Warranty: |
12 Months |
Length: |
Not More Than 6m |
Coating: |
Spray Metal |
Product: |
API 11AX Oilfield Sucker Rod Pump Plunger |
Material: |
AISI1045 Steel |
Application: |
Pump Parts |
Warranty: |
12 Months |
Length: |
Not More Than 6m |
Coating: |
Spray Metal |

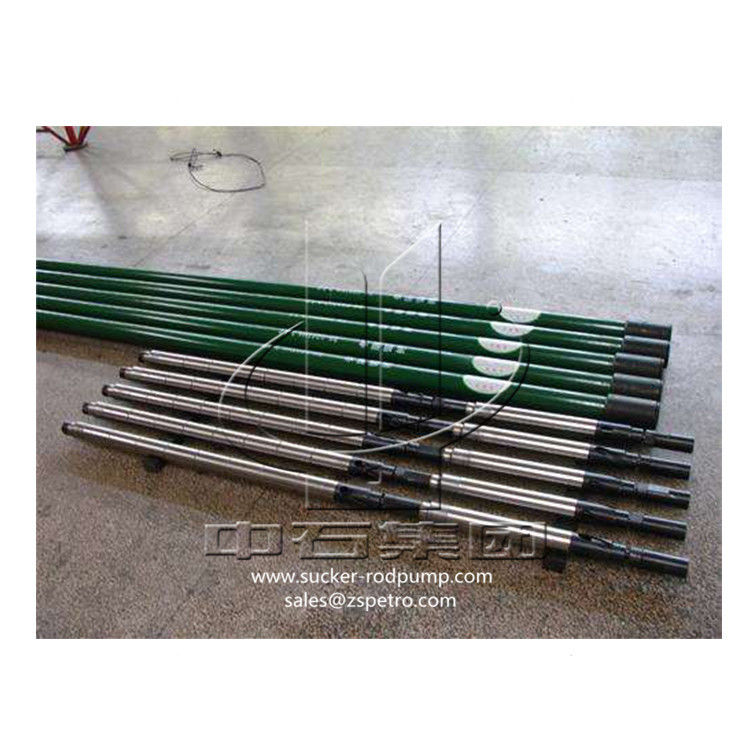

API 11AX oilfield sucker rod pump plunger
Pump plungers description
Plunger: 1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).
Pump plungers is the necessary oilfield pump parts for sucker rod pumps and tubing pumps.
Features
Technical parameters
| size(mm) | OD mm (-0.013-0mm) | Length m (+/-6.35mm) | Note |
| Ø28 | Ø26.99 | <=6.6m | PL<2.1,Straightness measurement value is less than0.03mm/ft；PL≥2.1m,Straightness measurement value is less than0.18mm/ft |
| Ø32 | Ø31.75 | ||
| Ø38 | Ø38.10 | ||
| Ø44 | Ø44.45 | ||
| Ø50 | Ø50.80 | ||
| Ø57 | Ø57.15 | ||
| Ø63 | Ø63.50 | ||
| Ø70 | Ø69.85 | ||
| Ø95 | Ø95.25 |
