Product Details
Place of Origin: China
Brand Name: Zhongshi
Certification: API ,ISO ,QHSE
Model Number: sucker rod
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: exported packing
Delivery Time: 2weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000pcs
Product Name: |
Sucker Rod Pump |
Steel Grade: |
D,KD,HY,K, |
Payment: |
T/T |
Supplier: |
Puyang Zhongshi Group |
Delivery: |
2 Weeks |
Usage: |
Oil Extraction |
Standard: |
API |
Advantage: |
High Quality And High Performance |
Product Name: |
Sucker Rod Pump |
Steel Grade: |
D,KD,HY,K, |
Payment: |
T/T |
Supplier: |
Puyang Zhongshi Group |
Delivery: |
2 Weeks |
Usage: |
Oil Extraction |
Standard: |
API |
Advantage: |
High Quality And High Performance |

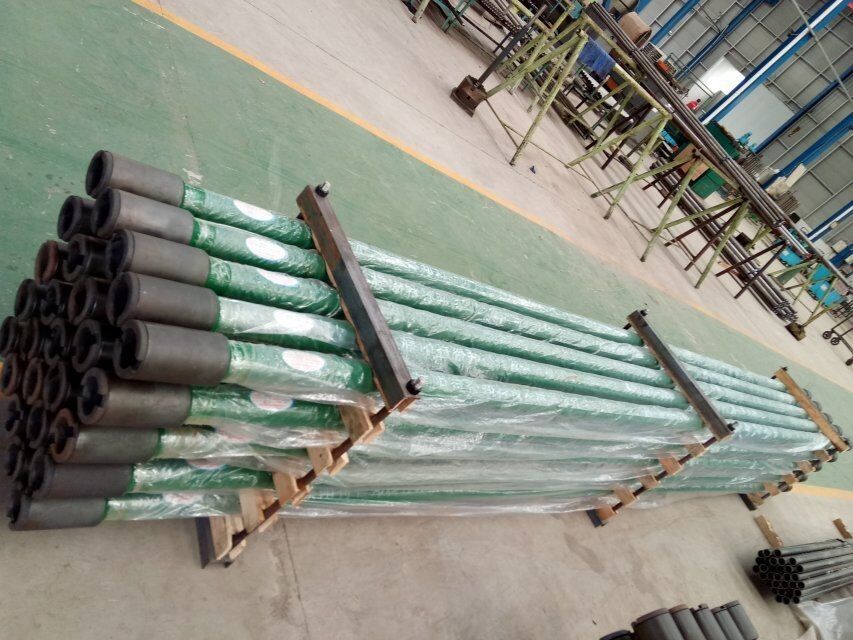

High Quality RHBC Rod, Heavy Wall Barrel, Cup Bottom Anchor Pump
Product description:
Rod pump is equipped with a support joint, support joint connected on the tubing string, and it is together with the tubing string down to the bottom. Plunger assembly is connected on the rod string and together with the whole pump down to support joint position, pump is fixed within the support joint by external force, plunger assembly is together with the sucker rod string up and down reciprocating movement to achieve pumping work.
When inspection and maintenance pump,it need not to put out of the tubing string, only through rod string together put out of the whole pump, operation is simple.
Technical parameter list:
| Specification | Pump diameter (in) | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE(in) | Sucker rod size |
| 15-106RHBC | Ø26.99 | 2.1-10.4 | 0.3-8.0 | 1.2-9.0 | 0.3-0.9 | 1.9” |
CYJ16 CYJ19 |
| 20-125RHBC | Ø31.75 | 2-3/8” | |||||
| 25-150RHBC | Ø38.10 | 2-7/8” | |||||
| 25-175RHBC | Ø44.45 | 2-7/8” | |||||
| 30-225RHBC | Ø57.15 | 3-1/2” |
Grade Detail:
1. Grade D sucker rod: Made of quality heat treated steel alloy, with high tensile and yield strength; suitable for non-corroding or mildly corroding environment.
2. Grade C sucker rod: Moderate strength, not susceptible to sulfide stress cracking, suitable in sour medium.
3.. Grade HL and HY sucker rod: High strength; structure and size matching with grade D sucker rod; withstanding 966-1, 136 MPa (140, 000-164, 720 psi); suitable for deep and large displacement wells
